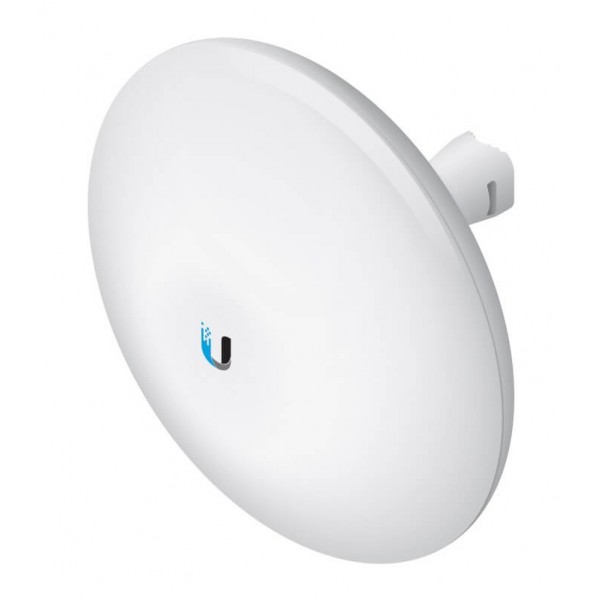

Ubiquiti Networks lancia la seconda generazione di airmax? CPE (Customer Premises Equipment), il NanoBeam? 5AC Gen 2. Il NanoBeam 5AC Gen 2 dirige l'energia RF in un'apertura del fascio stretto. Con il fuoco in una direzione, i blocchi NanoBeam 5AC Gen 2 o spazialmente filtra i rumori, così il rumore immunità è migliorata. Questa caratteristica è particolarmente importante in un'area affollata di altri segnali RF della stessa o simile frequenza. La radio e l'antenna si combinano per creare un CPE più efficiente e compatta. Il NanoBeam 5AC Gen 2 ottiene il massimo guadagno fuori il minimo ingombro. Fornire elevate prestazioni e un innovativo fattore di forma, il NanoBeam 5AC Gen 2 è versatile e conveniente da implementare. I dispositivi di seconda generazione lavorano sotto AirOS? software v8 - il sistema operativo rivoluzionario per Ubiquiti? prodotti ac airmax.
|
Dimensions (Mount Included) |
189 x 189 x 125 mm (7.44 x 7.44 x 4.92") |
|
Weight (Mount Included) |
0.530 kg (1.17 lb) |
|
Power Supply |
24V, 0.5A Gigabit PoE Adapter (Included) |
|
Max. Power Consumption |
8.5W |
|
Operating Frequency: |
|
|
Worldwide |
2412 - 2462 MHz 5150 - 5875 MHz |
|
USA: U-NII-1 |
5150 - 5250 MHz |
|
USA: U-NII-2A |
5250 - 5350 MHz |
|
USA: U-NII-2C |
5470 - 5725 MHz |
|
USA: U-NII-3 |
5725 - 5850 MHz |
|
Gain |
19 dBi |
|
Networking Interface |
(1) 10/100/1000 Ethernet Port Wi-Fi for Management |
|
Processor Specs |
Atheros MIPS 74Kc, 720 MHz |
|
Memory |
128 MB DDR2, 8 MB Flash |
|
LEDs |
Power, Ethernet, (4) Signal Strength |
|
Signal Strength LEDs |
Software-Adjustable to Correspond to Custom RSSI Levels |
|
Max. VSWR |
1.5:1 |
|
Channel Sizes |
PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz |
|
Polarization |
Dual Linear |
|
Enclosure |
Outdoor UV Stabilized Plastic |
|
Mounting |
Pole-Mount (Kit Included), Wall-Mount |
|
Wind Loading |
45.4 N @ 200 km/h (10.2 lbf @ 125 mph) |
|
Wind Survivability |
200 km/h (125 mph) |
|
ESD/EMP Protection |
Air: ? 24 kV, Contact: ? 24 kV |
|
Operating Temperature |
-40 to 80? C (-40 to 176? F) |
|
Operating Humidity |
5% to 95% Noncondensing |
|
Certifications |
CE, FCC, IC |
|
RoHS Compliance |
Yes |
|
Salt Fog Test |
IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
|
Vibration Test |
IEC 68-2-6 |
|
Temperature Shock Test |
IEC 68-2-14 |
|
UV Test |
IEC 68-2-5 at 40? C (104? F), Equivalent: ETS 300 019-1-4 |
|
Wind-Driven Rain Test |
ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
