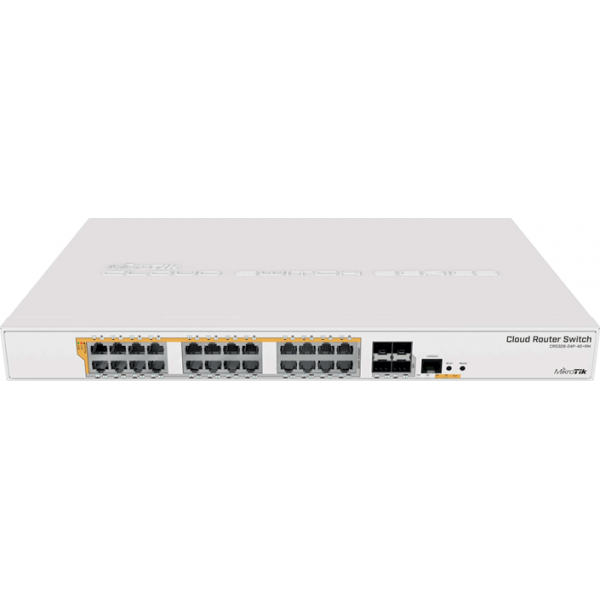

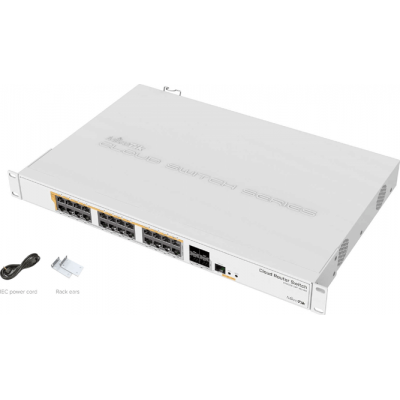

CRS328-24P-4S + RM prodotto da Mikrotik e distribuito da Wisp Store è uno switch a 28 porte indipendente, ha 24 porte Gigabit Ethernet, che offrono diverse opzioni di potenza: POE passivo, POE a bassa tensione, 802.3af / at (Tipo 1 "PoE" / Tipo 2 "PoE + ") con auto-rilevamento. Le quattro porte SFP + offrono opzioni di connettività fino a 10 Gbps tramite fibra ottica o moduli Ethernet (non inclusi).
CRS328-24P-4S + RM è fornito in una custodia per montaggio su rack ICJ con alimentazione 100-240 V CA da 500 W incorporata. Il dispositivo consuma fino a 44 W lasciando 450 W garantiti per ogni 8 porte Ethernet per alimentare i dispositivi POE. Ogni porta può fornire fino a 30 W di potenza con qualsiasi opzione di potenza scelta.
Il dispositivo ha una funzione "Dual boot" che consente di scegliere tra due sistemi operativi: RouterOS o SwOS. Se si preferisce disporre di un sistema operativo semplificato con solo funzioni specifiche dello switch, utilizzare SWOS. Se desideri poter utilizzare il routing e altre funzionalità di Layer 3 nel tuo CRS, utilizza RouterOS. È possibile selezionare il sistema operativo desiderato da RouterOS, da SwOS o dalle impostazioni del caricatore di RouterBOOT. Tutte le funzionalità sono fornite con un prezzo dirompente, offrendo il miglior rapporto prezzo / prestazioni sul mercato.
| Switching features | Quick specifications |
| Non-blocking Layer 2 switching capacity | 24 Gigabit Ethernet ports |
| 16K host table | 4 Sfp+ ports |
| IEEE 802.10 VLAN | RJ45 serial console port |
| Supports up to 4K simultaneous VLANs | Non-Blocking throughput: 64 Gbps |
| Port isolation | Switching capacity: 128 Gbps |
| Port security | Forwarding rate: 95.2 Mpps |
| Broadcast storm control | Maximum power consumption: 44 W (without POE |
| Port mirroring of ingress/egress traffic | devices connected) |
| STP / RSTP / MST P | Supports PoE+ IEEE 802.3at/af and 24 V |
| Access Control List | Passive POE) |
| MikroTik neighbor discovery | Temperature based fan control |
| SNMP) | ICJ rackmount |
| 10218-byte jumbo frames support IGMP snooping IEEE 802.3ad and static link aggregation | Selectable power output per port (24 / 48 V) |
Specifications
| Product code | CRS328-24P-4S+RM |
| CPU | Dual-Core ARM v7 800 MHz |
| RAM | 512 MB |
| Storage type | Flash |
| Storage size | 16 MB |
| Switch chip model | 98DX3236Al |
| 10/100/1000 Ethernet portsSFP+ cages | 24 |
| Operating system | SWOS / RouterOS (Dual boot) |
| Supported input voltage | IOO - 240 V |
| Dimensions | 443 x 305 x 44 mm |
| Operating temperature | -20 0 C . . +600 C tested |
| Max power consumption | 44 W |
| Serial port | RJ45 |
