RF ELEMENTS TwistPort adaptor for Ubiquiti Rocket 5AC PRISM TP-ADAP-R5AC-PRISM
WP-RF-TP-ADAP-R5AC-PRISM
46,19 €

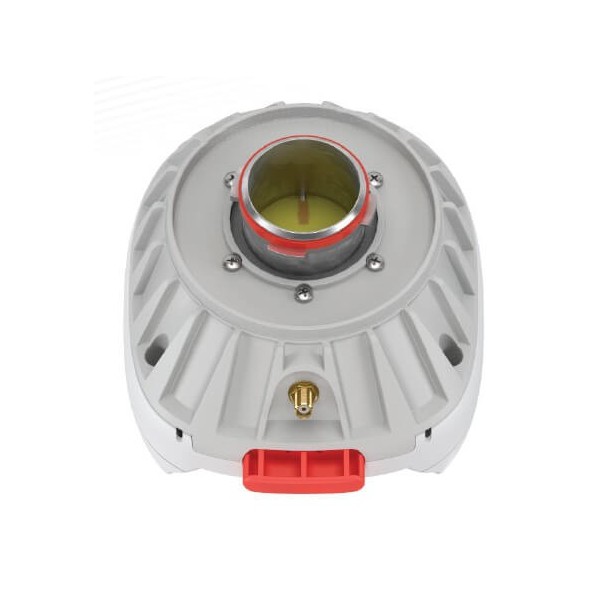

TwistPort Adaptor for Rocket 5AC PRISM (TP-ADAP-R5AC-PRISM)
The TwistPort™ Adaptor for Rocket 5AC PRISM makes the Rocket™ compatible with all TwistPort™ Antennas. TwistPort™ Adaptors are equipped with our original quick locking waveguide port. Connecting and disconnecting the Rocket™ 5AC PRISM into the TwistPort™ Adaptor is very simple and requires no tools.
| Technical data | |
| Antenna Connection | TwistPort - Quick Locking Waveguide Port |
| Radio Connection | 3x Slide-On RP-SMA and 1x RP-SMA for GPS |
| Materials | Insert - Aluminium Alloy Adaptor - UV stabilized and weather resistant ABS plastic |
| Flame Rating | UL 94 HB |
| Temperature | -40°C to +60°C (-40°F to +140°F) |
| Wind Survival | 160 km/h |
| Weight | 0.36 Kg / 0.8 lbs |
| Performance | |
| Frequency Range | 5180 - 6400 MHz |
| Polarization | Dual Linear H + V |
| VSWR Max | 1.8 |
| Impedance | 50 Ohm |
